Tactile Tiles (TOLERANCES AS PER IS 4457:2007)

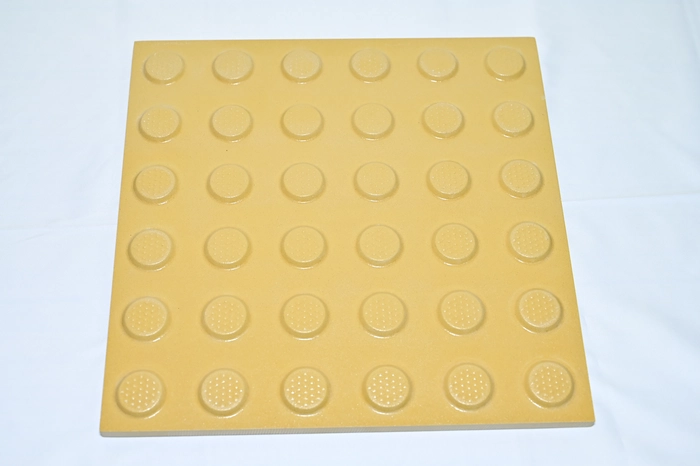

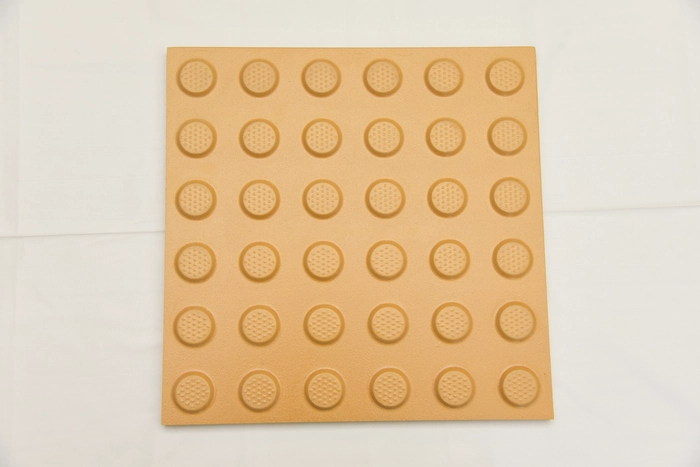

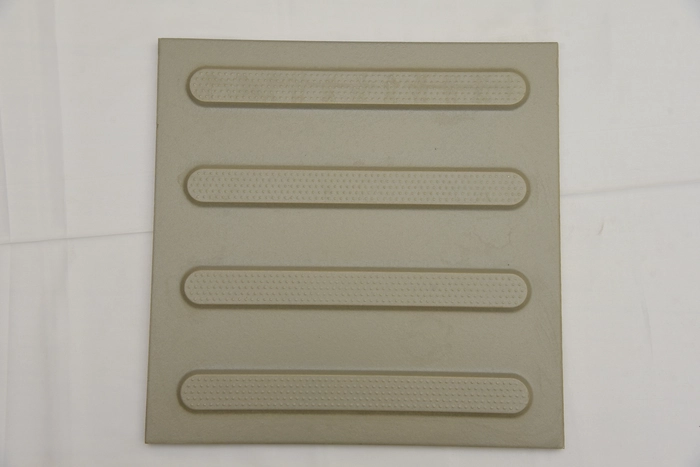

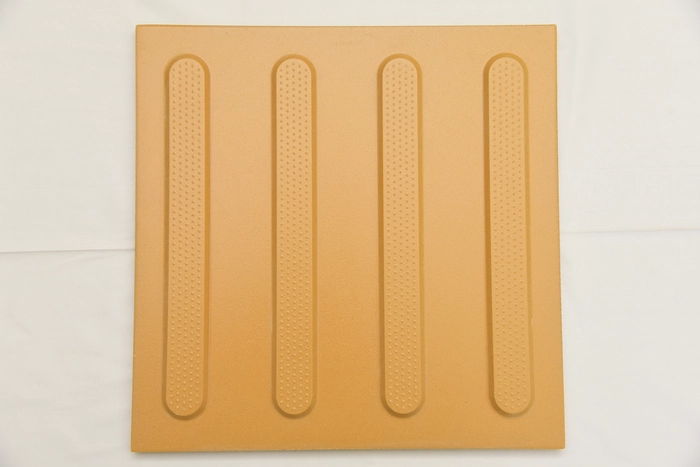

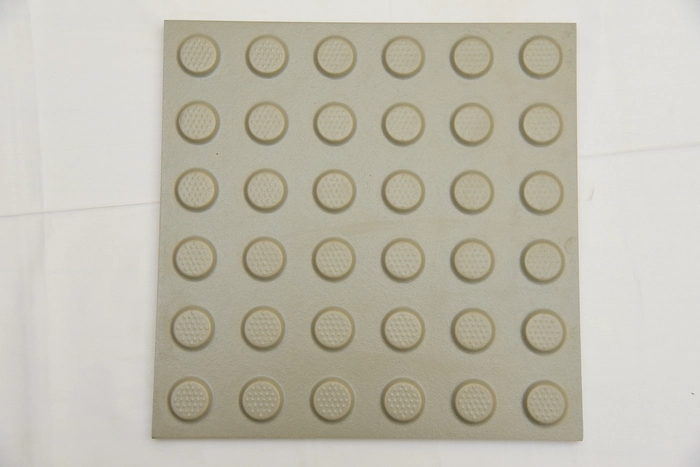

We manufacture high quality ceramic Tactile Tiles that may aid in navigation to the disabled. Our Tactile Tiles feature a 3mm height from base to top of node and are available in Directional & Hazard. Available in 10mm and 12mm thickness, they are an ideal option for making spaces more disability friendly.
Description :
Our tactile tiles have been used at Delhi Metro, Mumbai Monorail, Jaipur Metro, Kolkata Metro, Chennai Metro, Amritsar BRTS among several prestigious projects.
These tiles are made with our industrial-strength ceramic tile body and offer very high durability making them an ideal solution for spaces with heavy foot traffic and vehicle movement as well.
- Sizes: 300x300mm
- Thickness: 10/13mm & 12/15mm
- Colours: Off-white/ivory, Steel Grey, Terracotta, Yellow, Blue, Green
Specifications
Characteristics
- Breaking Strength
- Modulus of Rupture
- Resistance to conc. Acid
- Water Absorption
- Straightness of edges
- Tolerance on Length/Breadth
- Surface Flatness
- MOHS Hardness
- Density
IS : 4457-2007 Requirement
- 1300 N min.
- >35 N/mm^2
- Loss of mass shall not more 1.5%
- <0.5%
- ± 0.5%
- ± 0.75%
- ± 0.5%
- -
- >2
Pelican Test Result
- 3000-15000 N
- >35 N/mm^2
- 0.005
- <0.5%
- ± 0.5%
- ± 0.75%
- ± 0.5%
- >7
- >2.35
